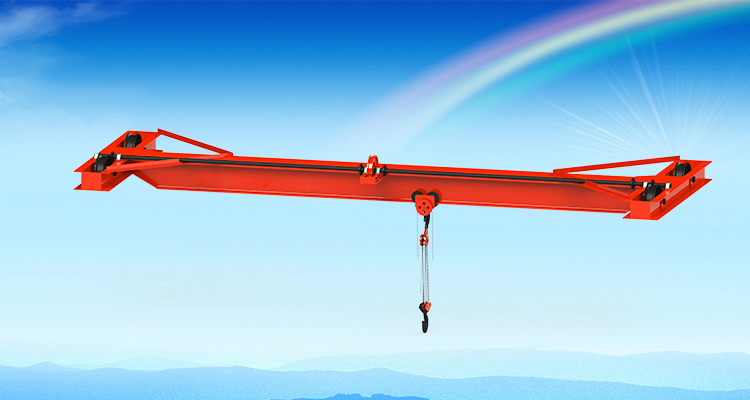

The SL type manual single beam crane is a lightweight and small model, suitable for factory equipment installation, maintenance, and workplaces without power supply. The manual single beam crane is composed of main parts such as bridges, large vehicle transmission mechanisms, and manual monorail cranes. Both the large vehicle crane and cargo lifting are driven by hand zipper strips. The SL type manual single beam suspension crane is designed and manufactured according to the JB/T10381-2002 standard, and is used in conjunction with SDS and SH models of manual monorail trolleys and manual hoists. It has become a lightweight and small-sized crane that operates on rails. This product is a general purpose crane, mainly used in mechanical manufacturing, assembly, warehouses, and other places.

1. The main beam of the metal structure is made of I-beams, which are welded with channel steel to form the beam and then integrated with the main beam.

2. Monorail trolley and chain hoist. The manual hoist can lift heavy objects, and the monorail trolley moves along the main beam direction.

3. Operating mechanism. This product is driven manually by pulling the chain to drive the sprocket gear instead of the driving wheel.

Lifting capacity (ton) 1-10t, lifting height (meter) 3-10, working system a1-a3, applicable span of 3-12 meters, working temperature range of -25 ℃ -+40 ℃
