The LX type electric single beam suspension crane is also known as a single beam suspension crane, suspended single beam crane, or suspended crane.

The LX type electric single beam suspension crane is used in conjunction with CD1, MD1 type electric hoists or chain hoists. The large vehicle is suspended on an I-beam, making the electric suspension crane a light and small suspension crane that operates on rails.

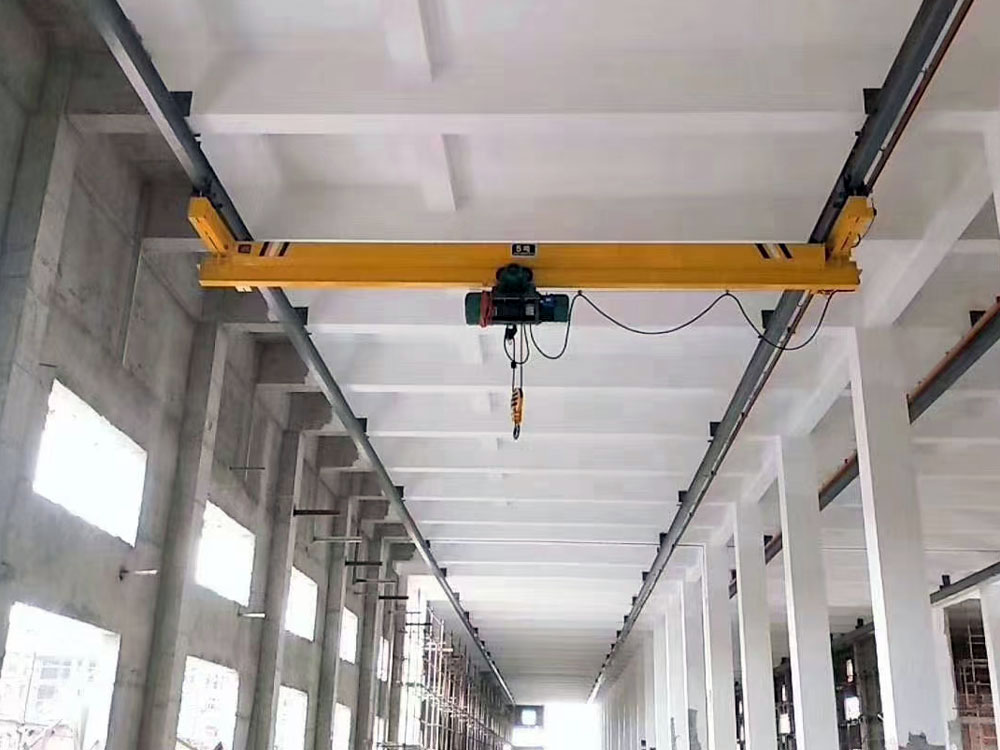

The LX type electric single beam suspension crane consists of a main beam welded with steel plates and I-beams, end beams, electric hoists, and electric racing cars. It is suspended on the I-beam track at the upper part of the factory building, with a cantilever length of 0.5-1m. The electric hoist runs along the lower flange of the main beam I-beam to complete the lifting of items.

The LX type electric single beam suspension crane is widely used in water plants, sewage treatment plants, assembly workshops, pump rooms, industrial and mining enterprises, pharmaceutical factories, warehouses and other places due to its compact structure, small occupation of factory space, no need for additional steel structures and cow head columns, safety and reliability.

The LX electric single beam suspension crane operating system is divided into ground control (wired handle operation, wireless remote control operation);

Generally, the lifting capacity of a suspended crane ranges from 0.5 tons to 10 tons;

Single beam suspension crane with a span of 2-22.5 meters;

Suspended single beam crane with a large vehicle operating speed of 20m/min and 30m/min. If there are special requirements, non-standard design and manufacturing can be used;

The working level of the suspended single beam crane is A3/M3;

The working environment temperature of the electric suspension crane is -25 ° C to 45 ° C, and the relative humidity is ≤ 85%;

Conventional working power supply: AC 380V 50HZ can also be customized according to customer usage;
