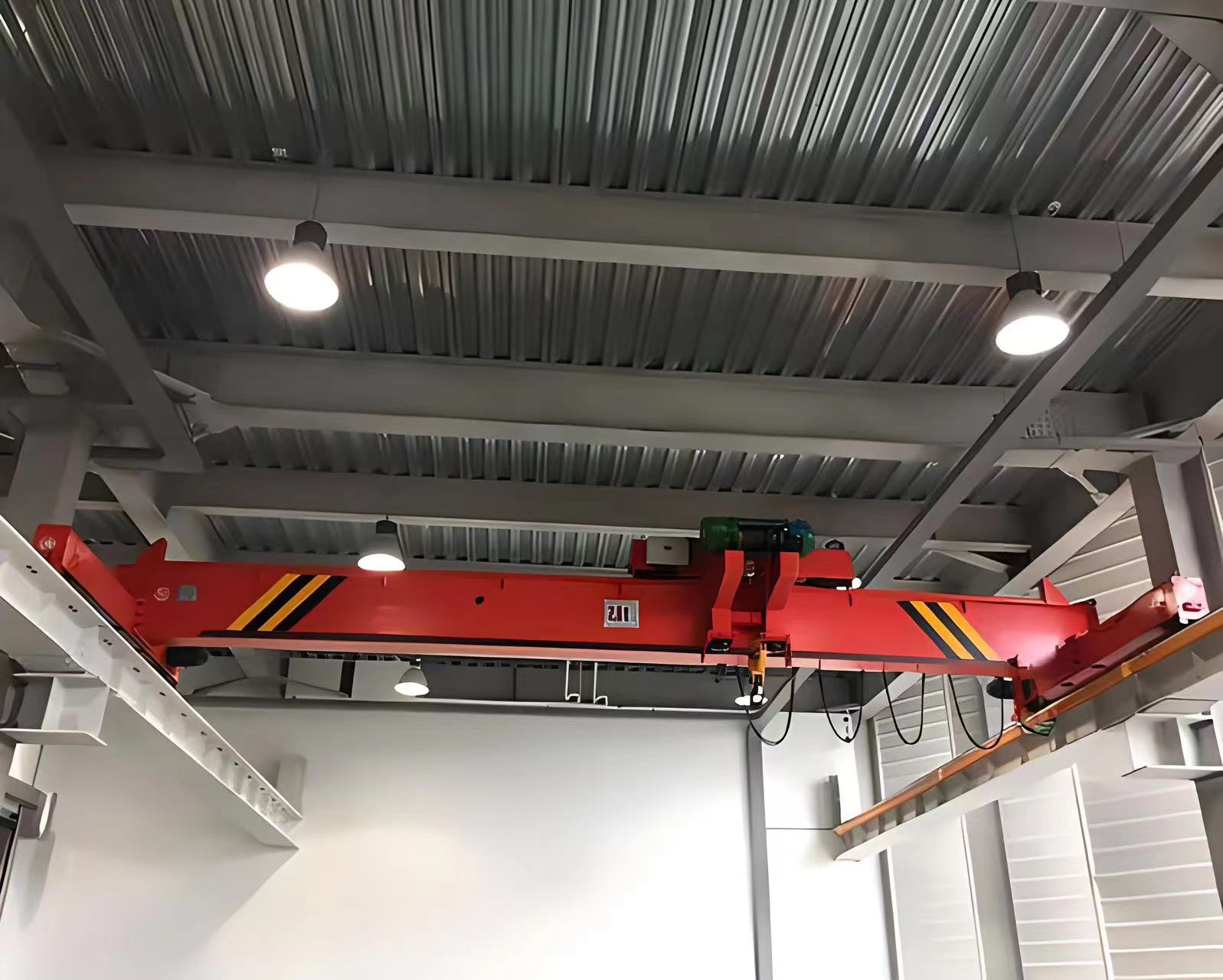

LDP type electric single beam suspension crane is a single beam crane with an electric hoist installed on an angular trolley. The characteristic of LDP type electric suspension single beam crane is that there are three connection methods between the main beam and the end beam, and it is equipped with a suspension hoist trolley, which is equivalent to installing an A1 type fixed electric hoist on the roof of the factory building. It can maximize the use of factory space, reduce the occupied space by about 1 meter compared to normal single beam, and avoid the phenomenon of hoist swinging when the traditional LD single beam crane hoist starts or stops.

LDP type electric single beam crane belongs to ultra-low clearance light small crane. The electric hoist is located on one side of the main beam, which increases the service space of the hook and can reduce the height and cost of the factory building. This product is widely used in working environments with temperatures ranging from -20 ℃ to+40 ℃ and low clearance heights in workshops due to its advantages such as large wheelbase, smooth operation, compact structure, good rigidity, sensitive operation, low noise, safety and reliability, and beautiful appearance. Its rated load is 3t to 10t, span is 7.5m to 22.5m, and working levels are A3 and A4.
