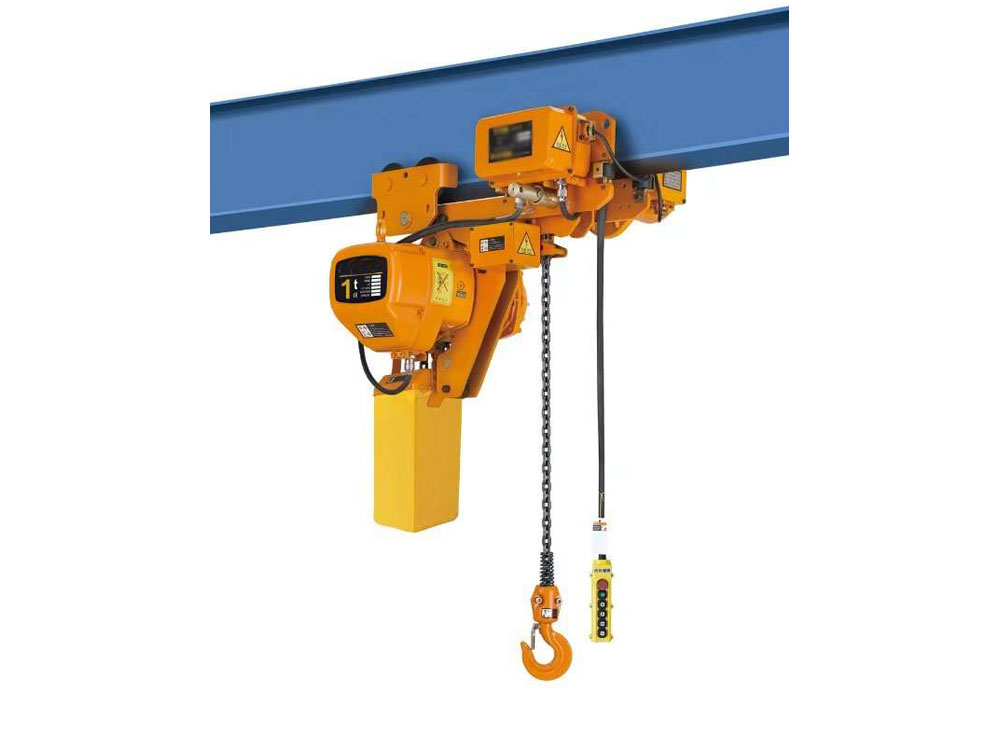

Chain hoist is a lightweight and compact lifting equipment. The electric chain hoist consists of an electric motor, a transmission mechanism, and a sprocket. All electric chain hoists are produced according to international standards, and the internal gears are all quenched at high temperatures to increase the wear resistance and toughness of the gears, resulting in a tight fit between the gears.

Structural characteristics of chain hoist

Structural characteristics of electric chain hoist: Product structure of electric hoist: The body is made of high-strength tensile shell or die cast aluminum shell, and is precision manufactured by thin-walled extrusion molding process, with small volume, light weight and high strength. The standard electric chain hoist has an independent gearbox system, a two-stage coaxial transmission gear mechanism sealed inside the gearbox, and a long-life oil bath lubrication system. The powder metallurgy clutch of the electric hoist is used as an overload protection device, and the braking adopts disc DC electromagnetic field braking, which has a large braking torque, smooth, fast, and low noise.

Scope of application of chain hoist

The application range of electric chain hoist is very wide, mainly used in various industries such as factories, warehouses, wind power generation, logistics, docks, construction, etc. It is used for lifting or loading and unloading goods, and can also lift heavy objects for convenient work or repair of large machines. The electric chain hoist is operated by the operator using buttons on the ground, and can also be operated in the control room or remotely controlled through wired (wireless) means. The electric chain hoist can be used for fixed suspension, as well as for traveling with electric monorail trolleys and manual push/pull monorail trolleys.

The tonnage of the electric chain hoist is 0.1T, 0.25T, 0.5T, 1.5T, 1T, 2T, 3T, 5T, 10T, 20T, 25T, 30T, 50T, 60T. Installation and use of the electric chain hoist include single beam hoist, bridge crane, gantry crane, and suspension crane It can be modified and used as a winch Therefore, electric hoist is one of the commonly used lifting equipment in factories, mines, ports, warehouses, freight yards, shops, etc., which improves labor efficiency. Essential machinery for improving working conditions.
